- Size: 10M
- Place of Origin: Shandong
- Brand Name: Ronghui
- Model Number: PVC-M
- Weight: 100.000 kg

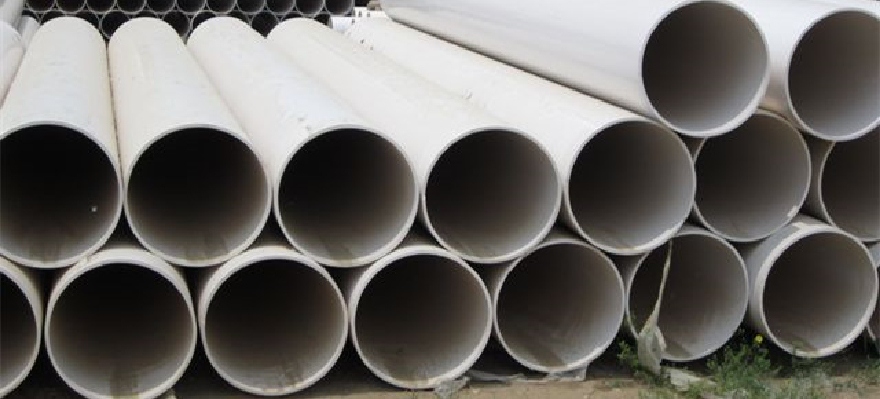

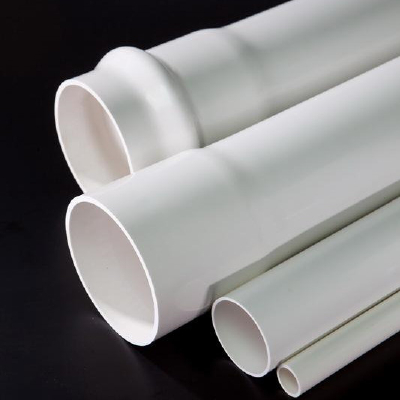

Modified Poly Vinyl Chloride (PVC-M) Pipe for Water Supply
I.Pipe Introduction,
The modified poly vinyl chloride (PVC-M) pipe for water supply manufactured by Ronghuiguantong Corporation Limited is made on the basis of preferred PVC resin (with the VCM content strictly controlled) and non-toxic stabilizer (organic tin), with the method of synergistic toughening by elastomer/inorganic rigid particles. The modified poly vinyl chloride (PVC-M) pipe for water supply manufactured by the technology can, at the time of protecting PVC-U material high-strength property, have good ductility and high pressure resistance capability and enhance the malleability of material and rapid crack growth resistance capacity. The product has been tested by authoritative organizations such as National Center for Quality Supervision and Testing of Plastic Products and Shandong Sanitation Test Center, and its sanitation property, physical property and mechanical property are completely in conformity with the national standard and enterprise standard, reaching the international level through the appraisal by the expert committee. The pipe is widely used in water delivery and distribution pipe network, industrial production pipe network, as well as urban and rural drainage and irrigation system.
II.Specifications,
Executive Standard: CJ/T272-2008
Nominal outside diameter dn, mm | Nominal wall thickness en.mm | ||||
S25 | S20 | S16 | S12. 5 | S10 | |
SDR51 | SDR41 | SDR33 | SDR26 | SDR21 | |
Nominal pressure, MPa | |||||
0. 63 | 0. 8 | 1.0 | 1.25 | 1.6 | |
20 | - | - | - | - | 2.0 |
25 | - | - | - | - | 2.0 |
32 | - | - | - | - | 2.0 |
40 | - | - | - | - | 2.0 |
50 | - | - | - | 2.0 | 2.4 |
63 | - | - | 2.0 | 2.5 | 3.0 |
75 | - | 2.0 | 2.3 | 2.9 | 3.6 |
90 | 2.0 | 2.2 | 2.8 | 3.5 | 4.3 |
110 | 2.2 | 2.7 | 3.4 | 4.2 | 5.3 |
125 | 2.5 | 3. 1 | 3.9 | 4.8 | 6.0 |
140 | 2.8 | 3.5 | 4.3 | 5.4 | 6.7 |
160 | 3.2 | 4.0 | 4.9 | 6.2 | 7. 7 |
180 | 3.6 | 4.4 | 5.5 | 6.9 | 8.6 |
200 | 3.9 | 4.9 | 6.2 | 7.7 | 9.6 |
225 | 4.4 | 5.5 | 6.9 | 8.6 | 10.8 |
250 | 4.9 | 6.2 | 7. 7 | 9.6 | 11.9 |
280 | 5.5 | 6.9 | 8.6 | 10.7 | 13.4 |
315 | 6.2 | 7.7 | 9.7 | 12.1 | 15.0 |
355 | 7.0 | 8. 7 | 10.9 | 13.6 | 16.9 |
400 | 7.9 | 9.8 | 12.3 | 15.3 | 19. 1 |
450 | 8.8 | 11.0 | 13.8 | 17.2 | 21.5 |
500 | 9.8 | 12.3 | 15.3 | 19. 1 | 23.9 |
560 | 11.0 | 13.7 | 17.2 | 21.4 | 26.7 |
630 | 12.3 | 15.4 | 19.3 | 24.1 | 30.0 |
710 | 13.9 | 17.4 | 21.8 | 27.2 | 33.9 |
800 | 15.7 | 19.6 | 24.5 | 30.6 | 38.1 |
