HDPE Black Double Wall Composite Drain Pipe Manufacturer

HDPE Black Double Wall Composite Drain Pipe Manufacturer

  • Min.Order Quantity: 100 Sets
  • Supply Ability: 1000000 Sets per Month
  • Port: China port
  • Payment Terms: L/C,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2010-07-05
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  10M
  • Place of Origin:  Shandong
  • Brand Name:  Ronghui
  • Model Number:  HDPE-2
  • Weight: 100.000 kg

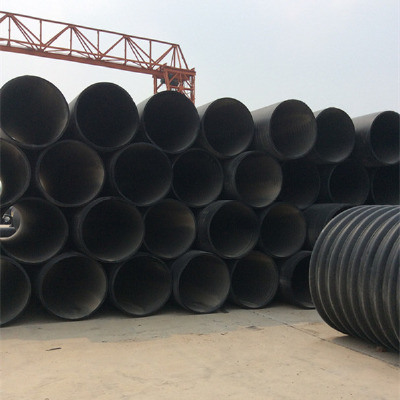

HDPE Plastics-Steel Composite Drain Pipe with Double Plain Wall


I.Pipe introduction:

The spirally wound plastics-steel composite drain pipe with double plain wall is a kind of third-generation new plastics-steel drain pipe which is made by prefabricating the main raw material polyethylene (PE) into T-shaped plates, sheets and strips and winding the plates, sheets and strips on the pipe moulding machine and connecting them by welding, and meanwhile, rolling galvanized strip steel into a W-shaped steel strip and inserting the strip into the groove between two plates, sheets and strips and cladding the steel strip with PE as the outer wall of pipe.

The technical system of plastics-steel drain pipe with double plain wall has won 7 patents in China and passed the test carried out by the National Test Center for Polymer and Chemical Building Materials.

The product combines the corrosion resistance of plastics with the obdurability of steel and it is featured by secure and reliable ring stiffness, light weight, easy and reliable installation, good sealing performance, low transportation and construction costs, strong corrosion resistance, and strong resistance to abnormal and accidental loads. It is a kind of new environmental protection pipe heavily promoted by national and local competent departments at all levels.

As a kind of underground drainage pipe, the HDPE plastics-steel composite drain pipe with double plain wall combines the stiffness of steel with the corrosion resistance of polyethylene, so it can be widely applied to the gravity flow transportation of various corrosive and non-corrosive medium, such as municipal sewage pipe, industrial sewage pipe, rainwater drainage pipe, bridge and culvert sewage and water drainage pipe, agricultural irrigation pipe, as well as water intake pipe at the water source. It has a vast market prospect, and is the first choice of national key construction projects, so it will launch a green revolution in underground drainage pipe industry.

It executes the standard of the People’s Republic of China for urban and rural construction: CJ/T 329-2010 Spirally Wound Plastics-Steel Composite Pipes with Double Plain Wall for Underground Drainage.

II.Pipe specification:

No.

1

2

3

Ring stiffness

SN8

SN12.5

SN16

Nominal diameter DN/ID

300

300

300

400

400

400

500

500

500

600

600

600

700

700

700

800

800

800

900

900

900

1000

1000

1000

1100

1100

1100

1200

1200

1200

1300

1300

1300

1400

1400

1400

1500

1500

1500

1600

1600

1600

1800

1800

1800

2000

2000

2000

2200

2200

2200

2400

2400

2400

2600

2600

2600

2800

2800

2800

3000

3000

3000

III. Requirements for physical properties of Pipe

Item

Requirements

Ring stiffness (kN/m2)

SN8

≥8

SN12.5

≥12.5

SN16

≥16

Impact property (TIR)

≤10%

Ring flexibility

The samples shall be smooth and free from reversed bending and cracks.

Oven test

The welds of water drain pipes shall be free from stratification and cracks.

Creep rate

≤2%

Tensile strength of weld

Nominal diameter

Minimum bearable tensile stress of water drain pipe/N

300 ≤DN/ID≤ 500

600

600≤ DN/ID ≤800

840

900≤ DN/ID ≤1200

1020

1300≤ DN/ID ≤2000

1460

DN/ID ≥2000

1600
