- Size: 10M
- Place of Origin: Shandong
- Brand Name: Ronghui
- Model Number: SFCP-PE
- Weight: 100.000 kg

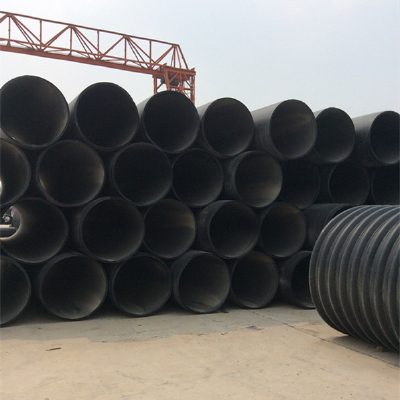

Pipe Skeleton Reinforced Plastic Composite Pipe (SFCP-PE)
I.Pipe introduction:
Thepipe skeleton reinforced plastic composite pipe is a kind of new composite pipe with external and internal pressure resistance, and its main raw materials are extrusion-grade high-density polyethylene, high-strength reinforced strip and steel strip. The pipe contains internal pressure pipe layer, high-strength reinforced layer, external pressure resistant reinforced layer and over-cladding layer from inside to outside.
The internal pressure pipe layer is a solid-wall pipe of extrusion integral forming and the wall of internal pressure pipe has a uniform composite high-strength reinforced belt outside; the high-strength reinforced layer is cladded with an external pressure resistant reinforced layer, and the external pressure resistant reinforced layer can adopt the wave-shaped steel strip reinforced structure or the hollow spiral tubular rib structure with the inner wall of single-wall polypropylene corrugated pipe; the surfaces of high-strength reinforced layer and external pressure resistant reinforced layer are uniformly cladded with a layer of resin as the over-cladding layer.
II.Pipe specification:
No. | Nominal dimension DN/ID | Minimum mean inside diameter dim, min | Minimum lamination thickness e, min | Minimum wall thickness of inner layer e1, min | Minimum thickness of over-cladding layer e2, min | Minimum thickness of steel strip t, min | Maximum thread pitch P, max |
1 | 300 | 300 | 4.8 | 2.3 | 1.5 | 0.4 | 75 |
2 | 400 | 400 | 5.6 | 3. 1 | 1.5 | 0.4 | 85 |
3 | 500 | 500 | 6.9 | 3.9 | 2.0 | 0.5 | 100 |
4 | 600 | 600 | 7.6 | 4.6 | 2.0 | 0.5 | 110 |
5 | 700 | 700 | 8.9 | 5.4 | 2.5 | 0.5 | 115 |
6 | 800 | 800 | 9.7 | 6.2 | 2.5 | 0.7 | 120 |
7 | 900 | 900 | 10.4 | 6.9 | 2.5 | 0.7 | 135 |
8 | 1000 | 1000 | 11.7 | 7.7 | 3.0 | 0.7 | 150 |
9 | 1200 | 1200 | 13.3 | 9.3 | 3.0 | 0.7 | 180 |
10 | 1400 | 1400 | 14.8 | 10.8 | 3.0 | 1.0 | 200 |
11 | 1500 | 1500 | 15.9 | 11.9 | 3.0 | 1.0 | 220 |
12 | 1600 | 1600 | 16.4 | 12.4 | 3.0 | 1.0 | 230 |
13 | 1800 | 1800 | 18.4 | 13.9 | 3.5 | 1.0 | 230 |
14 | 2000 | 2000 | 19. 9 | 15.4 | 3.5 | 1.0 | 235 |
15 | 2200 | 2200 | 21.5 | 17.0 | 3.5 | 1.0 | 235 |
16 | 2400 | 2400 | 23.0 | 18.5 | 3.5 | 1.0 | 235 |
III. Physical and Mechanical Propertie
Item | Requirements | |
Ring stiffness (KN/m2) | SN8 | ≥8 |
SN12.5 | ≥12.5 | |
SN16 | ≥16 | |
Impact property (TIR) | ≤10% | |
Elongation of internal pressure layer at break/% | ≥350 | |
Ring flexibility | The samples shall be smooth and free from reversed bending and cracks. | |
Oven test | The weld lines in outer walls of pipes shall be free from stratification and cracks. | |
Creep rate | ≤2 | |
Longitudinal retraction rate (110°C) /% | ≤3 | |
Oxidation induction time (200°C) /min | ≥20 |
IV. Intensity of short-term hydrostatic pressure
Test temperature/ (°C ) | Short-term hydrostatic pressure/MPa | Test time/h | Performance requirement |
20°C | Nominal pressure×2 | 1 | No fracture, no leakage |
80 °C | Nominal pressure×2×0.6 | 165 | No fracture, no leakage |
