- Size: 10M
- Place of Origin: Shandong
- Brand Name: Ronghui
- Model Number: PE002
- Weight: 100.000 kg
Ronghui Polyethylene (PE) Water Supply Pipe for sale
I.Pipe Introduction,

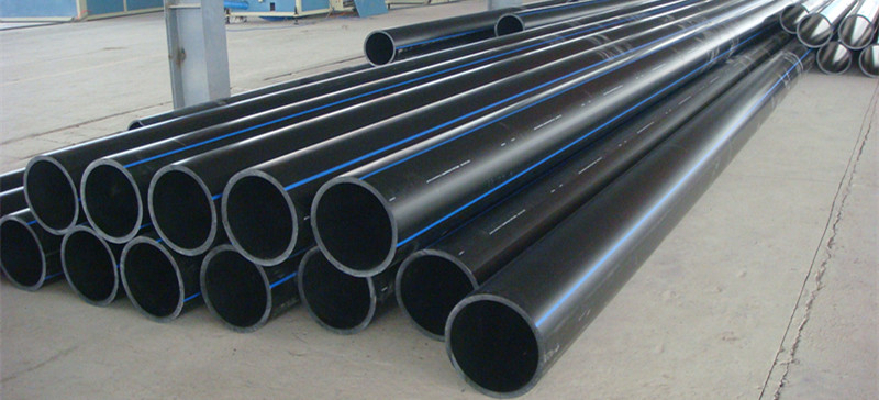

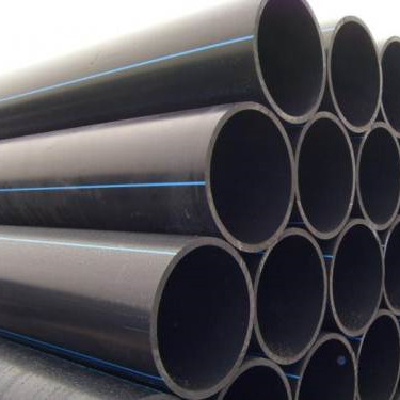

The polyethylene (PE) pipe for water supply is a kind of plastic pipe which is made by extruding the special material polyethylene once by plastic extruder, and it is used in city and town water supply networks, irrigation diversion works and agricultural irrigation projects, especially applicable to acid and alkali resistant, anti-corrosion environment. Since the PE pipe adopts hot melting and electric melting connection, so it realizes the integration of connectors and pipes and can effectively resist the circumferential stress caused by internal pressure and the axial antishock stress. What’s more, the PE pipe has no heavy metal salt stabilizer and is made from non-toxic materials; the pipe has no scale formation or microorganism breeding, avoiding the secondary pollution of drinking water.
II.Specifications
Water supply pipe -PE80(GB/T13663-2000) Appearance Blue Pipe Coextrusion black pipe with blue strip | Water supply pipe -PE100 (GB/T13663-2000) Appearance Blue Pipe Coextrusion black pipe with blue strip |
Nominal outside diameter Dn/mm | SDR33 | SDR21 | SDR17 | SDR13.6 | SDR11 | Nominal pressure MPa | 0.4 | 0.6 | 0.8 | 1.0 | 1.25 | Normal wall thickness | Normal wall thickness | Normal wall thickness | Normal wall thickness | Normal wall thickness | 5 | | | | | 2.3 | 32 | | | | | 3.0 | 40 | | | | | 3.7 | 50 | | | | | 4.6 | 63 | | | | 4.7 | 5.8 | 75 | | | 4.5 | 5.6 | 6.8 | 90 | | 4.3 | 5.4 | 6.7 | 8.2 | 110 | | 5.3 | 6. 6 | 8. 1 | 10.0 | 125 | | 6.0 | 7.4 | 9.2 | 11.4 | 140 | 4.3 | 6.7 | 8.3 | 10.3 | 12.7 | 160 | 4.9 | 7.7 | 9.5 | 11.8 | 14.6 | 180 | 5.5 | 8.6 | 10.7 | 13.3 | 16.4 | 200 | 6.2 | 9.6 | 11.9 | 14.7 | 18.2 | 225 | 6.9 | 10.8 | 13.4 | 16.6 | 20.5 | 250 | 7. 7 | 11.9 | 14.8 | 18.4 | 22. 7 | 280 | 8. 6 | 13.4 | 16.6 | 20.6 | 25.4 | 315 | 9. 7 | 15.0 | 18.7 | 23.2 | 28.6 | 355 | 10.9 | 16.9 | 21. 1 | 26. 1 | 32.2 | 400 | 12.3 | 19. 1 | 23.7 | 29.4 | 36.3 | 450 | 13.8 | 21.5 | 26.7 | 33. 1 | 40.9 | 500 | 15.3 | 23.9 | 29.7 | 36.8 | 45.4 | 560 | 17.2 | 26. 7 | 33.2 | 41.2 | 50.8 | 630 | 19.3 | 30.0 | 37.4 | 46.3 | 57.2 | 710 | 21.8 | 33.9 | 42. 1 | 52.2 | 64.6 | 800 | 24.5 | 38. 1 | 47.4 | 58.8 | 72. 7 | 900 | 27.6 | 42.9 | 53.3 | 66.2 | 81.8 | 1000 | 30.6 | 47. 7 | 59.3 | 73.5 | 90.9 | 1200 | 36.4 | 57.2 | 70.6 | 88.2 | 109. 1 | 1300 | 39.4 | 61.9 | 75.5 | 95.6 | 118.2 | 1400 | 42.4 | 66.7 | 82.4 | 102.9 | 127.3 | 1500 | 45.5 | 71.4 | 88.2 | 110.3 | 136.4 | 1600 | 48.5 | 76.2 | 94. 1 | 117.6 | 145.5 | | | | | | | | | Nominal outside diameter Dn/mm | SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 | Nominal pressure MPa | 0.6 | 0.8 | 1.0 | 1.25 | 1.6 | Normal wall thickness | Normal wall thickness | Normal wall thickness | Normal wall thickness | Normal wall thickness | 25 | | | | | 2.3 | 32 | | | | | 3.0 | 40 | | | | | 3. 7 | 50 | | | | | 4.6 | 63 | | | | 4.7 | 5.8 | 75 | | | 4.5 | 5.6 | 6.8 | 90 | | 4.3 | 5.4 | 6.7 | 8.2 | 110 | 4.2 | 5.3 | 6.6 | 8. 1 | 10.0 | 125 | 4.8 | 6.0 | 7.4 | 9.2 | 11.4 | 140 | 5.4 | 6. 7 | 8.3 | 10.3 | 12.7 | 160 | 6.2 | 7. 7 | .5 | 11.8 | 14.6 | 180 | 6.9 | 8.6 | 10. 7 | 13.3 | 16.4 | 200 | 7.7 | 9. 6 | 11.9 | 14.7 | 18.2 | 225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 | 250 | 9.6 | 11.9 | 14.8 | 18.4 | 22. 7 | 280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 | 315 | 12. 1 | 15.0 | 18. 7 | 23.2 | 28. 6 | 355 | 13.6 | 16.9 | 21. 1 | 26. 1 | 32.2 | 400 | 15.3 | 19. 1 | 23. 7 | 29.4 | 36.3 | 450 | 17.2 | 21.5 | 26. 7 | 33. 1 | 40.9 | 500 | 19. 1 | 23.9 | 29. 7 | 36.8 | 45.4 | 560 | 21.4 | 26. 7 | 33.2 | 41.2 | 50.8 | 630 | 24. 1 | 30.0 | 37.4 | 46.3 | 57.2 | 710 | 27.2 | 33.9 | 42. 1 | 52.2 | 64.6 | 800 | 30.6 | 38. 1 | 47.4 | 58.8 | 72. 7 | 900 | 34.4 | 42.9 | 53.3 | 66.2 | 81.8 | 1000 | 38.2 | 47. 7 | 59.3 | 73.5 | 90.9 | 1200 | 46.2 | 57.2 | 70.6 | 88.2 | 109. 1 | 1300 | 50.0 | 61.9 | 75.5 | 95.6 | 118.2 | 1400 | 53.8 | 66. 7 | 82.4 | 102.9 | 127.3 | 1500 | 57. 7 | 71.4 | 88.2 | 110.3 | 136.4 | 1600 | 61.5 | 76.2 | 94. 1 | 117.6 | 145.5 | | | | | | | | |
