Unplasticized PVC-U Pipe for Low-Pressure Conveyance in agricultural Irrigation

Unplasticized PVC-U Pipe for Low-Pressure Conveyance in agricultural Irrigation

  • Min.Order Quantity: 100 Sets
  • Supply Ability: 1000000 Sets per Month
  • Port: China port
  • Payment Terms: L/C,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2010-07-05
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  10M
  • Place of Origin:  Shandong
  • Brand Name:  Ronghui
  • Model Number:  PVC-U
  • Weight: 100.000 kg

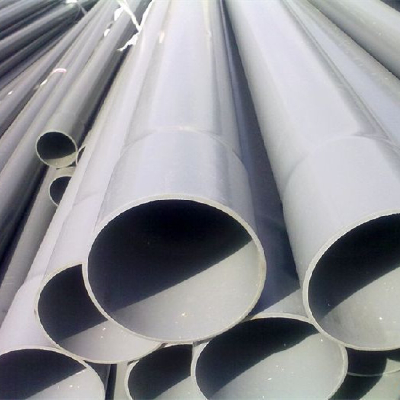

PVC-U Water Supply Pipe for irrigation

I.Pipe Introduction,

The PVC-U irrigation pipe (full name unplasticized poly (vinyl chloride) (PVC-U) pipe for low-pressure conveyance in irrigation) takes PVG resin as the main raw material, added with proper auxiliaries; it is manufactured and formed by mixing, extrusion, sizing, cutting and flaring processes. The pipe has large stiffness, high external force resistance, and it is not easy to be destroyed by external forces when being buried under ground for water delivery, and it will not rust. It does not have strict requirements for water quality; it is not easy to accumulate dirt or to be blocked.

II.Specifications,

Nominal outside diameter (dn)

Limit deviation of mean outside diameter

Wall thickness e

Nominal pressure 0. 2MPa

Nominal pressure 0. 25MPa

Nominal pressure 0. 32MPa

Nominal pressure 0. 4MPa

Normal wall thickness

Limit deviation

Normal wall thickness

Limit deviation

Normal wall thickness

Limit deviation

Normal wall thickness

Limit deviation

75

+0.3

0

-

-

-

-

1.6

+0.4

0

1.9

+0.4

0

90

+0.3

0

-

-

-

-

1.8

+0.4

0

2.2

+0.5

0

110

+0.4

0

-

1.8

+0.4

0

2.2

+0.4

0

2.7

+0.5

0

125

+0.4

0

-

2.0

+0.4

0

2.5

+0.4

0

3. 1

+0.6

0

140

+0.5

0

2.0

+0.4

0

2.2

+0.4

0

2.8

+0.5

0

3.5

+0.6

0

160

+0.5

0

2.0

+0.4

0

2.5

+0.4

0

3.2

+0.5

0

4.0

+0.6

0

180

+0.6

0

2.3

+0.5

0

2.8

+0.5

0

3.6

+0.5

0

4.4

+0. 7 0

200

+0.6

0

2.5

+0.5

0

3.2

+0.6

0

3.9

+0.5

0

4.9

+0.8

0

225

+0.7

0

2.8

+0.5

0

3.5

+0.6

0

4.4

+0.7

0

5.5

+0.9

0

250

+0.8

0

3. 1

+0.6

0

3.9

+0.6

0

4.9

+0.8

0

6.2

+1.0

0

280

+0.9

0

3.5

+0.6

0

4.4

+0.7

0

5.5

+0.9

0

6.9

+1.1

0

315

+1.0

0

4.0

+0.6

0

4.9

+0.8

0

6.2

+1.0

0

7.7

+1.2

0

The normal wall thickness ( en) determined according to the design pressure ( oa) 8 Mpa .


III. Physical and Mechanical Properties of Pipe

Item

Technical index

Density / (kg/m 3 )

1350^1550

Longitudinal retraction rate /(%)

5

Tensile yield stress /MPa

≥ 40

Hydraulic pressure test

No fracture

(20°C, 4 times of nominal pressure, 1h)

No leakage

Drop hammer impact ( 0°C)

9/10 is qualified

Ring stiffness (kN/m 2 )

Nominal pressure 0. 2MPa pipe

0.5

Nominal pressure 0. 25MPa pipe

1.0

Nominal pressure 0. 32MPa pipe

2.0

Nominal pressure 0. 4MPa pipe

4.0

Flattening test (flatten to 50%)

No fracture
